LG 43inch LCD Display Screen LD430EQE-FSA1 3840*2160pixels 700CD 51PIN Digital Signage outdoor highbright lcd panel
LD430EQE-FSA1 (Alias: LD430EQE (FS)(A1)) is a 43" diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. (hereafter called LG Display), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: sRGB, Hight Brightness, WLED Backlight, 10 bit, Matte . Based on its features, einklcd recommend that this model be applied to Digital Signage, Outdoor High Brightness etc. According to the information stored in einklcd this model mass production on Q1, 2024, Now this model is discontinued. We inputted this model's specification on Mar 22 2024 for the first time, and the latest update on Jun 12 2025. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with LG Display or it's agent to learn lateast production and specification detail of LD430EQE-FSA1. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand:LG Display
Model P/N: LD430EQE-FSA1
Diagonal Size: 43"
Panel Type: a-Si TFT-LCD, LCM
Resolution 3840(RGB)×2160, UHD 103PPI Pixel
Format :RGB Vertical Stripe
Active Area 941.184(W)×529.416(H) mm
Bezel Opening 946.2(W)×534.4(H) mm
Outline Size: 962(W)×554.8(H) ×34.6(D) mm
Surface Antiglare (Haze 28%), Hard coating (2H)
Brightness 700 cd/m² (Typ.)
Contrast Ratio:1000:1 (Typ.) (TM)
Viewing Angle89/89/89/89 (Min.)(CR≥10) Left / Right / Up / DownDisplay ModeIPS, Normally Black, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Best View on Symmetry
Response Time: 6 (Typ.)(G to G)
Display Colors1.07B 72% NTS
CLamp Type: 3 strings × 2CN WLED , 30K hours , Without Driver
Frequency 60Hz
Touch Screen: Without
Panel Weight8.3/8.7Kgs (Typ./Max.)
Application: Digital Signage Outdoor High Brightness
Signal Interface: V-by-One 8 lane , 51 pins Connector
Input Voltage:12.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ;
Storage Temp.: -20 ~ 60 °C
|
|

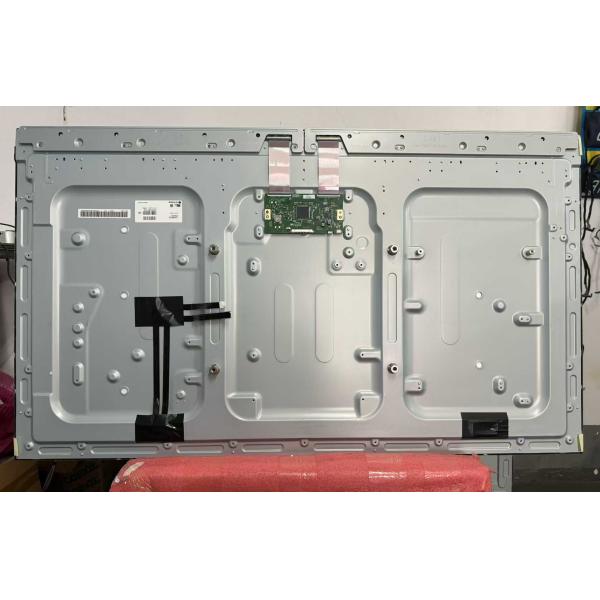

LG 43inch LCD Display Screen LD430EQE-FSA1 3840*2160pixels 700CD 51PIN Digital Signage outdoor highbright lcd panel Images
|
